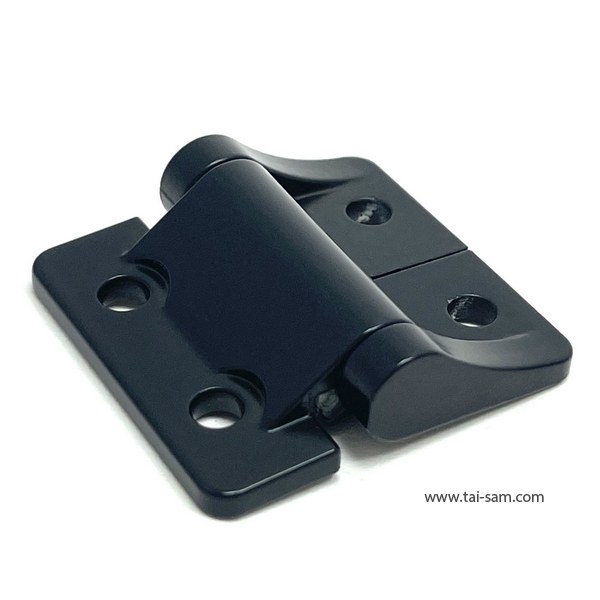

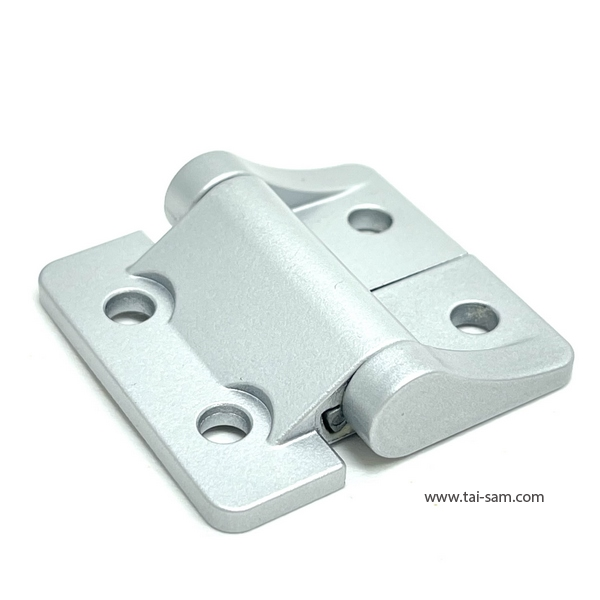

180 Degree Constant Torque Hinge
Operation Process
External Hinge
- Material: Zinc Alloy
-
Opening angle: 180°
- Surface treatment: silver coating or black coating
- Damping value: 0.9/ 1.4/ 1.8/ 2.3/ 3.4 N.m Attenuation deviation ±20%
- Life cycle : more than 20,000 times
- Applicable environment:The hinge is an open hinge ( damping type ) suitable for indoor use
| Item No | Damping Value | Surface Treatment | |
|---|---|---|---|
| CL-153-42-09A | 0.9 N/m | Silver Coating | |
| CL-153-42-14A | 1.4 N/m | Silver Coating | |
| CL-153-42-18A | 1.8 N/m | Silver Coating | |
| CL-153-42-23A | 2.3 N/m | Silver Coating | |
| CL-153-42-34A | 3.4 N/m | Silver Coating | |
| CL-153-42-09B | 0.9 N/m | Black Coating | |
| CL-153-42-14B | 1.4 N/m | Black Coating | |
| CL-153-42-18B | 1.8 N/m | Black Coating | |
| CL-153-42-23B | 2.3 N/m | Black Coating | |
| CL-153-42-34B | 3.4 N/m | Black Coating |
