S Type Cam Lock

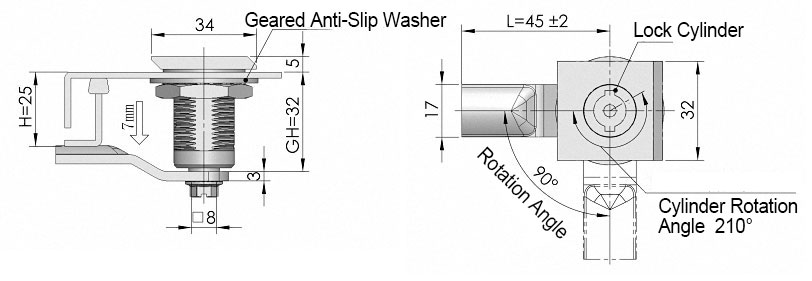

Operation Process
IP54 RoHS Right and Left Side Opening Compression
- Quarter Turn Compression Latch
- Material: Zinc Alloy
- S.Tr: Black powder coated
- Compression: 7m/m
- Panel thickness: 1~17 m/m
- Maximum Static Load:190N
- Maximum Input Torque:6N.m

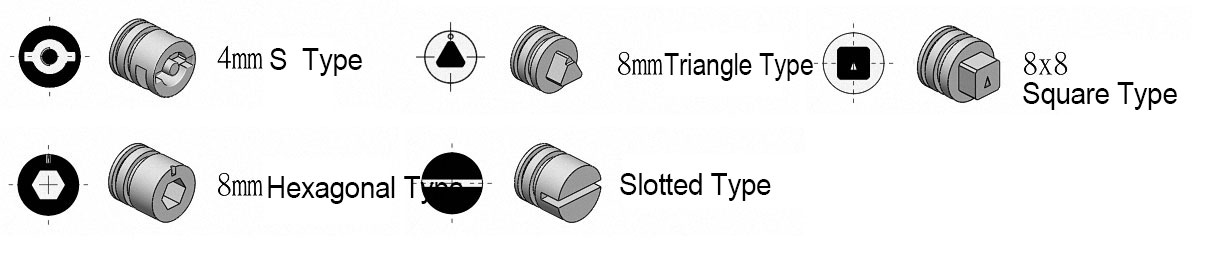

Cylinder Type
Cut Out
| Cylinder Type | Fixed Grip | Adjustable Grip | Key |
|---|---|---|---|
| S Type 4mm | MS-817 | MS-817-1A | K15-01 |
| Triangle Type 8mm | MS-817-3 | MS-817-3A | K15-03 |
| Square Type 8x8mm | MS-817-4 | MS-817-4A | K15-04 |
| Hexagonal Type 8mm | MS-817-5 | MS-817-5A | K15-07 |
| Slotted Type | MS-817-8 | MS-817-8A | Coin or Screwdriver |
