Quarter Turn Cam Lock
Product No : MS-714-4

Inquiry

Print

Additional files

MS-714-4.rar

3D Download

Operation Process

RoHS IP54 Right and Left Side Opening

  • Small Type Waterproof Latch
  • Material:Body-Zinc Alloy ; Handle-PA ; Cam-Steel zinc plated
  • Panel thickness:1~8m/m
  • Available with a selection of different cam types

Cut Out

unit:mm

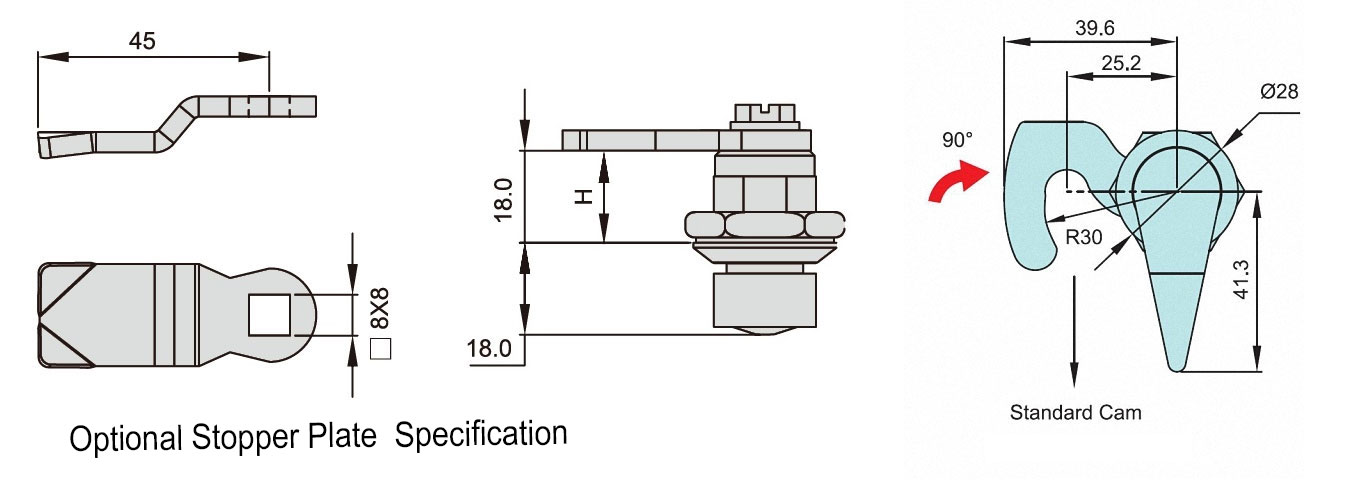

Cam Selection
CAM CODECAM DEPTH(H)
S1B4500 18
S1B4507 25
S1B4516 35
