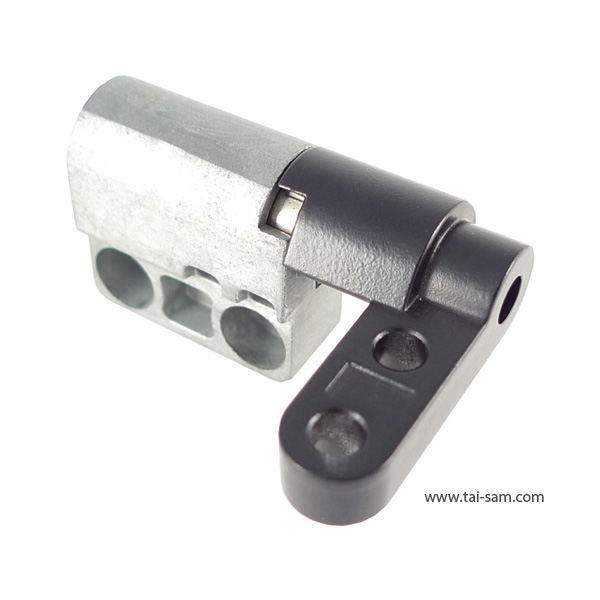

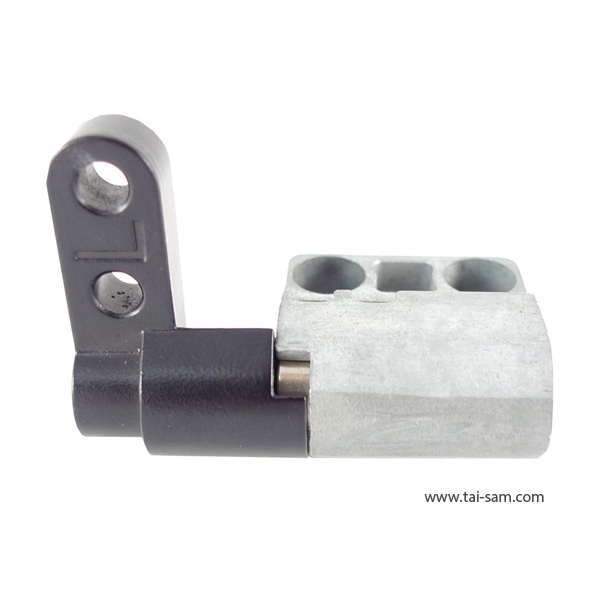

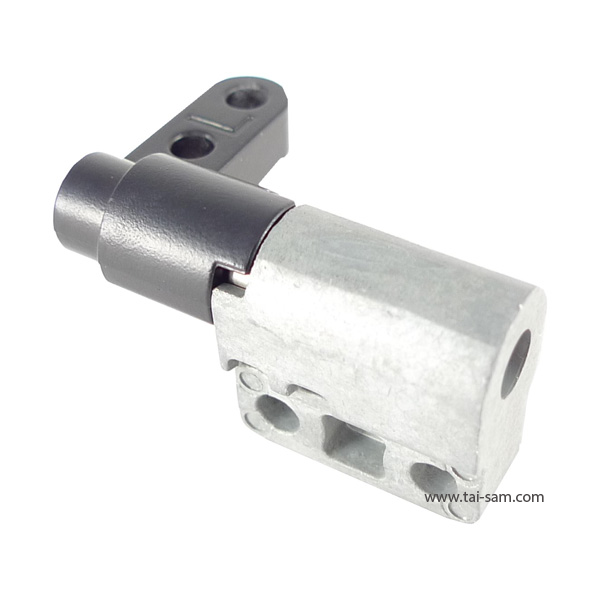

Damping Hinge
Operation Process
- Material: zinc alloy hinge, stainless steel pin
- Opening angle: 54°
- Surface treatment: black paint
- Transverse maximum static load: 900N
- Longitudinal maximum static load: 1500N
- Damping value: 2.6±20%N.m
- Product Life: 20,000 cycles
- Applicable environment:The hinge is an open hinge ( damping type ) suitable for indoor use
